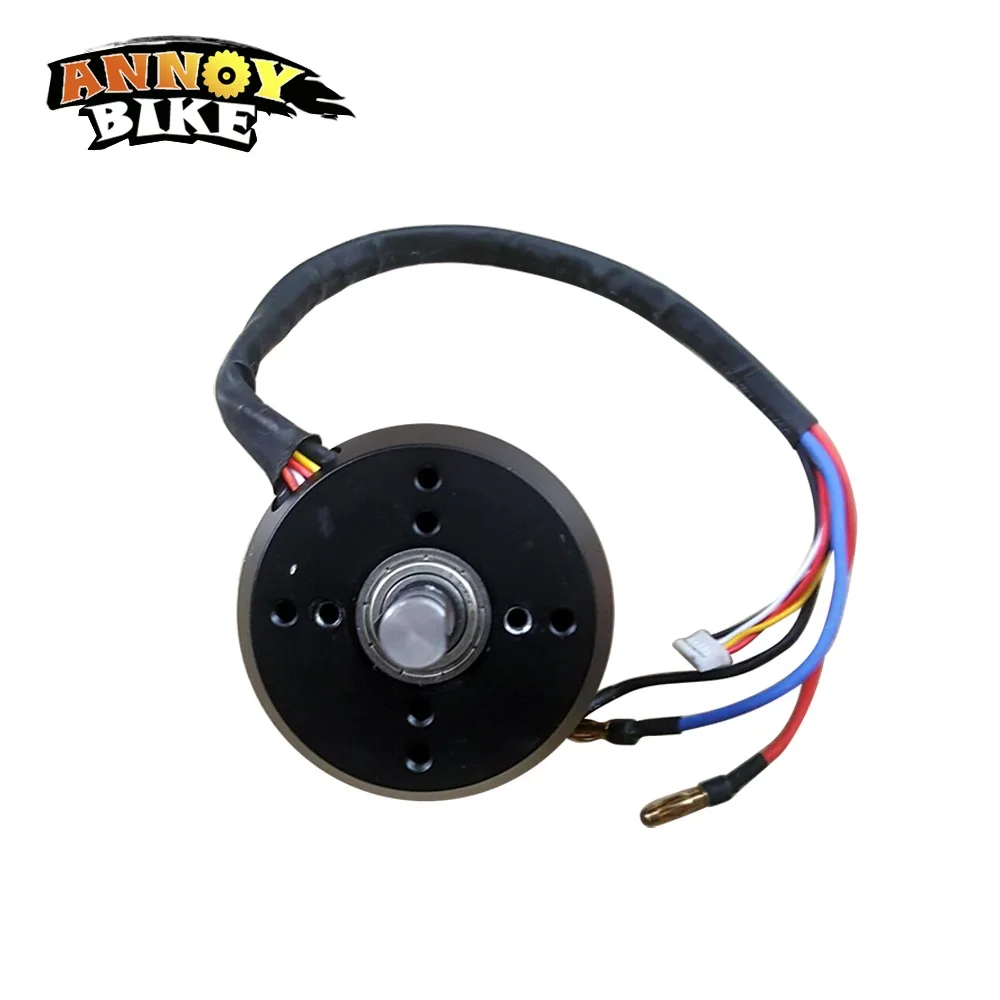

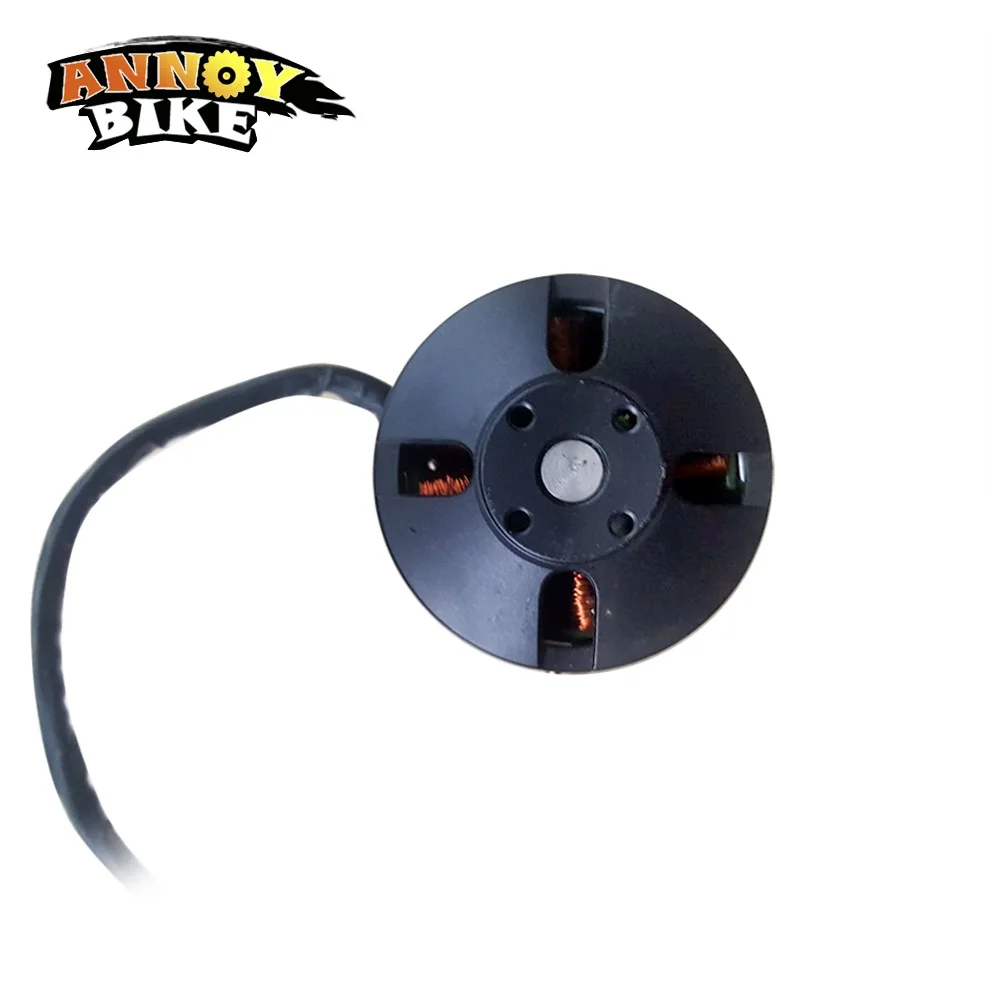

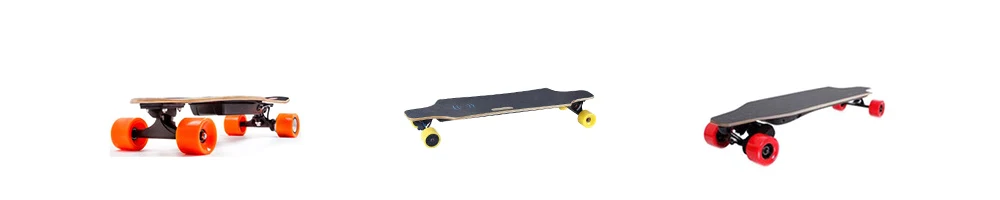

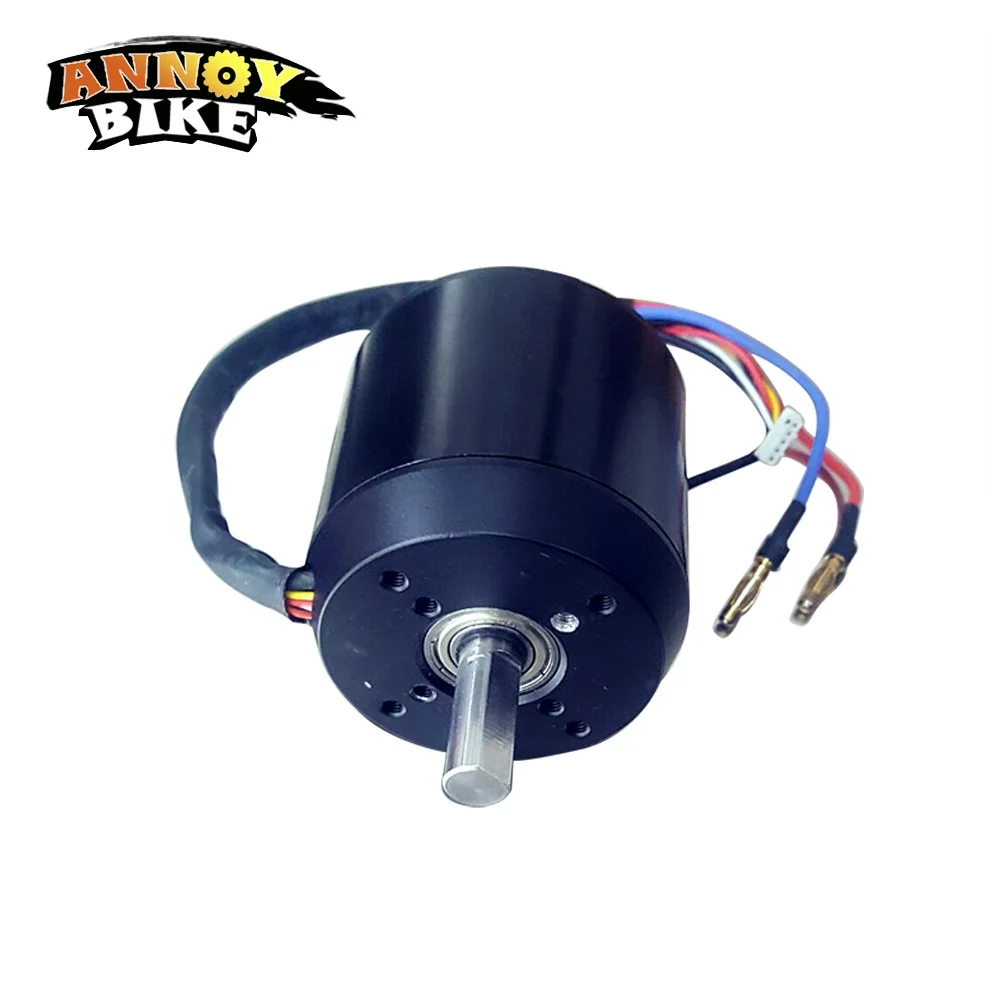

63mm Skateboard Motor High Speed BLDC Motor 500w 1500w For Electric Skatebaord Model Aircraft DIY Technical data of the motor Diameter: 63mm Shell length: 70mm Out shaft diameter: 10mm out shaft length: 35mm Installation HolePitch: Top 44mm; Bottom: 22mm Installation Hole Size: M4*4 Weight: 792g Power:1500w 3000w Volatge:15v-60v( best 24v 36v) Max Current: 120A Unload speed:3600rpm/min 6400rpm/min 9360rpm/min KV: 170-330kv Torque: 2-3.5 N.m Note: ThisproducthasbeenUpgraded Itlikesthefollowingpicture,justtheappearancehaschanged,thesizeandpowerareconsistentwiththeoldone. Dimensional drawing: Detail pictures: Application Skatebaord Model Aircraft DIY
